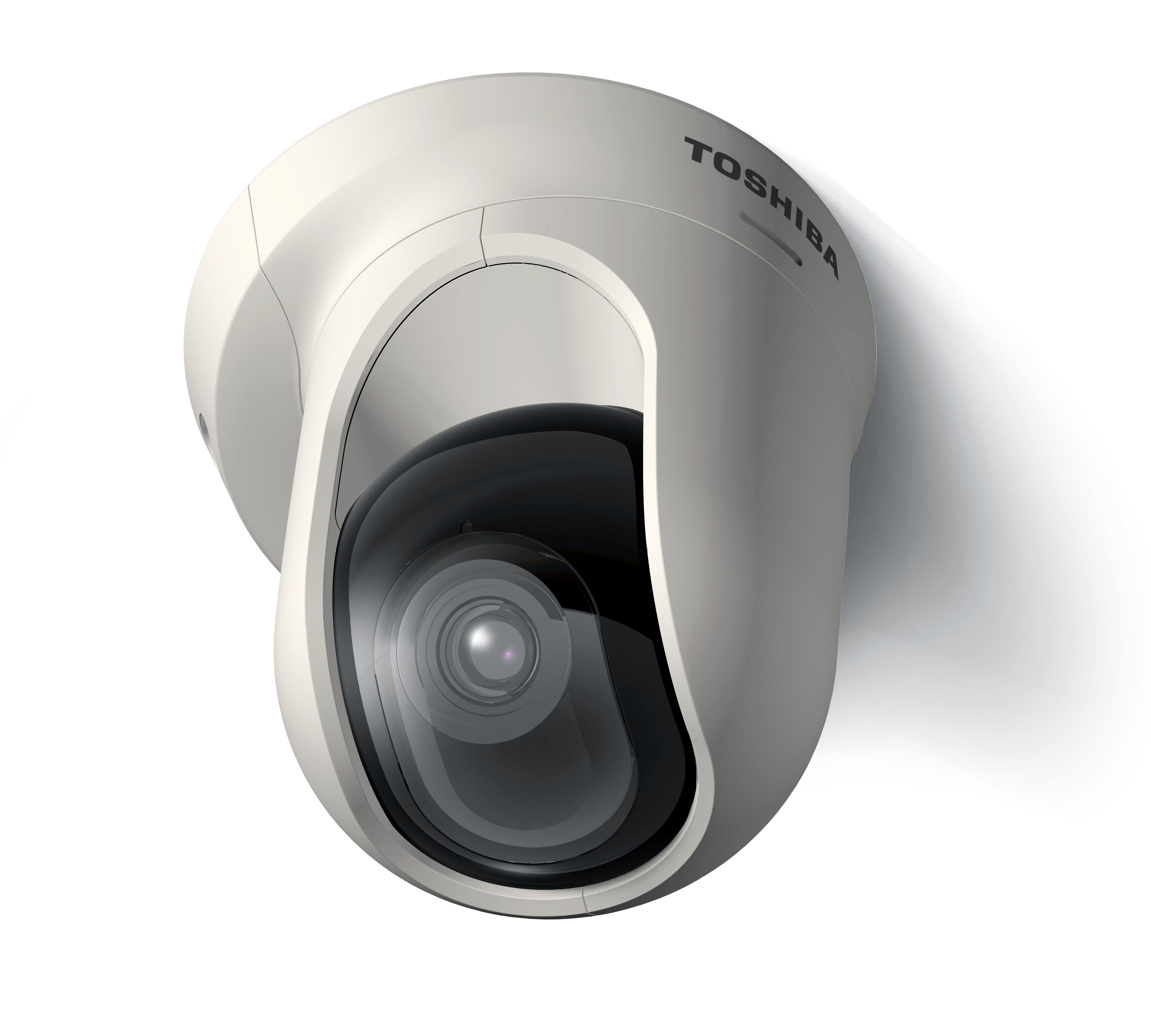

Toshiba is offering the IK-WB16A with PoE. The recording software allows you to view and record up to sixteen (16) IK-WB16A cameras. Simple, intuitive setup and playback provides complete surveillance. The IK-WB16A solution will show you how powerful, easy and cost effective an IP video surveillance system should be. The IK-WB16A-W is wireless (discontinued)
| Application | |
|---|---|
| Uses | Security, surveillance, CCTV, indoor |
| Audio | |
| Audio In/Out | MIC In (plug-in 3.3V, 200k); LINE OUT (1 Vms) 1 |
| Camera | |
| Effective Pixels | 1600 x 1200 |
| Image Sensor | 1/3.2" CMOS 2MP |
| IR Illuminators | - |
| Lens | f=3.6mm F=1.8 |
| Minimum Illumination | 0.2 lux / F1.8 (1/5s 8x) |
| Features | |
| Day/Night | - |
| Wide Dynamic Range | - |
| General | |
| Dimensions | 5.0” (H) x 5.5” (D); (127mmx140mm) |
| Environmental | Housing Available |
| Operation Temperature | 14° F to 122° F (-10° C to 50° C) |
| Power Consumption | 15.4W max |
| Power Requirements | 12V DC ±10%, 802.3af class 3 PoE for IK-WB16A |
| Weight | 1.06 lbs (480g) for the IK-WB16A |
| Interface | |
| Digital In/Out | 6 IN / 1 OUT for IK-WB16A |
| SD Card Slot | Yes, max 32GB |
| Network | |
| ONVIF | - |
| Video | |
| Composite Output | - |
| Compression | MPEG4, MPJEG |
| Frame rate (max) | 10 fps @ 1600x1200 (MPEG4); 15 fps @ 1600x1200 (MJPEG) 2 |
| Resolutions | 1600x1200, 1280x960, 800x600, 640x480, 320x240, 176x144 |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
