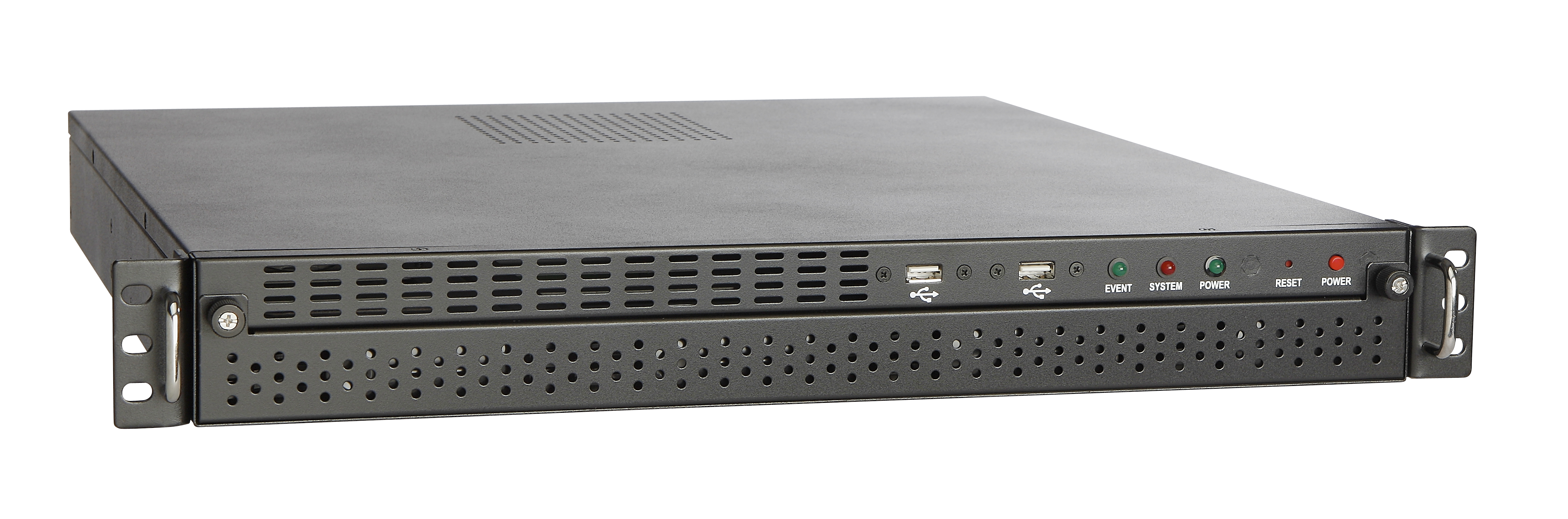

The ESV16U/32U is a high performance, cost-effective network video recorder. The 4 removable hard drives (not included) allows for a total of 24TB of storage for maximum days of recording. 1U rack mount size optimizes space and maximizes storage density in a server grade chassis.
| Dimensions | |
|---|---|
| Dimensions (h x w x d) | 2.13" x 18.19" x 16.93" |
| Rackmount Size | 1U |
| Weight | 15.4 lbs |
| Frame Rates | |
| Analog Live Viewing Rate (PPS) | - |
| Analog Recording Rate (PPS) | - |
| Inputs/Outputs | |
| Alarm Outputs | 4 |
| Audio Inputs | 1 Line In, 1 Mic In, Up to 32 |
| LAN | 100/1000 Gigabit Ethernet |
| Sensor/Alarm Inputs | 8 |
| USB Ports | USB 2.0 x 4 |
| Overview | |
| Analog Video Inputs | - |
| Image Compression | H.264, MPEG4, MPJEG |
| IP Video Inputs | 16/32 |
| Max Number of Channels | 16/32 |
| Video Outputs | VGA x 1 |
| Power | |
| Power Input | AC 100-240V (50Hz/60Hz) |
| Redundant Power Supply | - |
| Remote Clients Included | |
| Browser Client | Internet Explorer |
| Managed Recorder Health | - |
| Mobile Apps | iPad/iPhone/Android |
| Tablet Apps | iPad/Android |
| VMS Software | CMS Basic |
| Storage | |
| External Storage | eSATA x 1 |
| RAID Configuration (optional) | RAID0, RAID1, RAID5, RAID10 |
| Storage Capacity | Up to 12TB |
| System | |
| CPU | Intel Atom |
| Operating System | Embedded Linux |
| Warranty | |
| Limited Warranty | 2 years, 2 years advance replacement |
| Designs and specifications are subject to change without notice. | |
