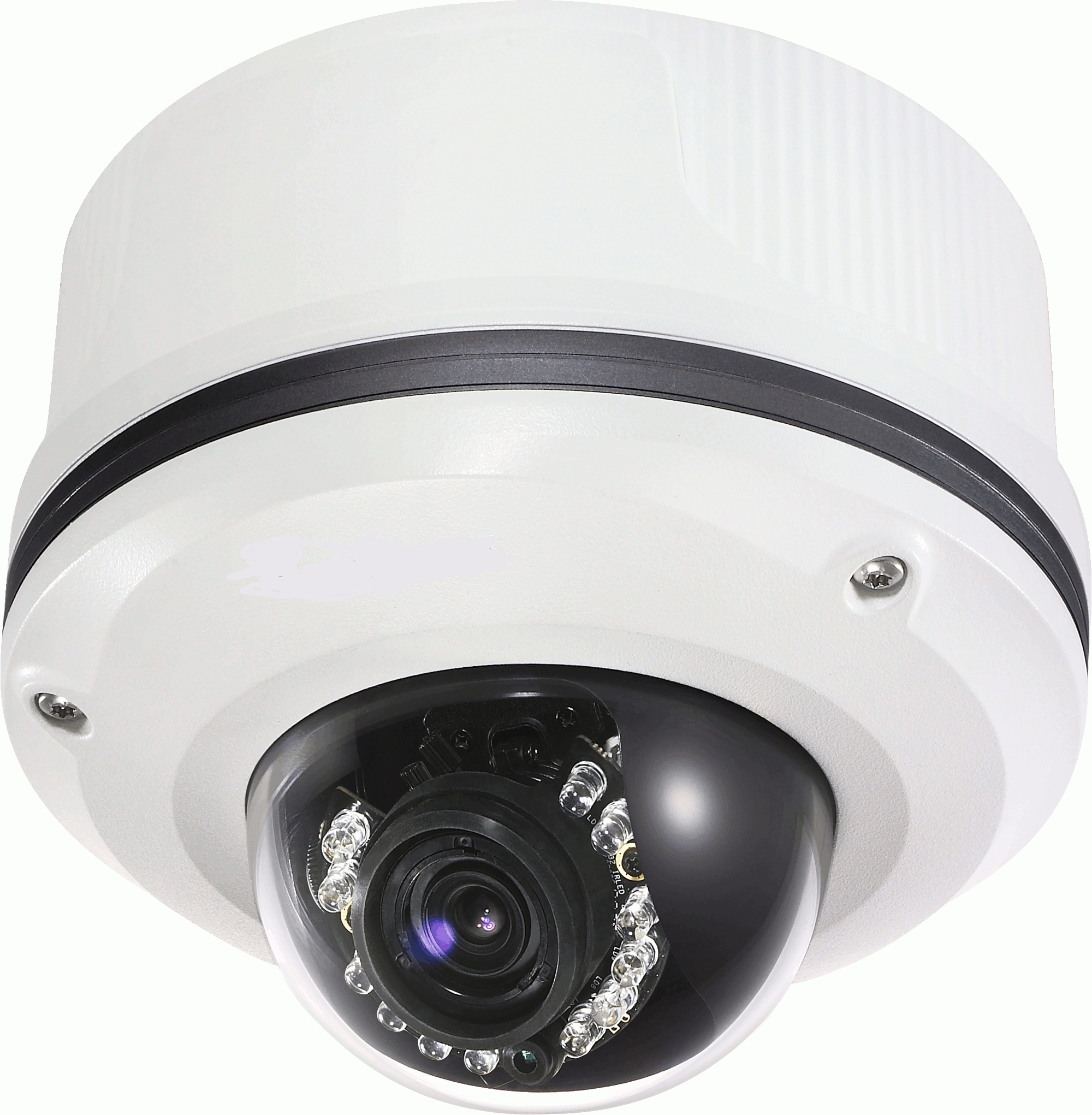

The IK-WR12A is weatherproof and vandal resistant. It has an IP66 rating, meaning that its electronics are protected against dust, water/moisture/ humidity, and impact. It will also detect tampering by blockage or spray paint. Install it with confidence in high-risk schools, jails, retail, parking lots, warehouses, airports, or anywhere outdoors. The advanced codec technology allows you to easily view, control, and manage all networked cameras using a standard web browser or Toshiba's surveillance management software from any networked computer. The ePTZ feature allows users to quickly move the focus to a target area for close-up viewing without moving the camera physically.
| Audio | |
|---|---|
| Audio In/Out | MIC In (plug-in 3.3V, 200k); LINE OUT (1 Vms) 1 |
| Camera | |
| Effective Pixels | 1600 x 1200 |
| Image Sensor | 1/3.2" CMOS 2MP |
| IR Illuminators | 20m range |
| Lens | Varifocal f=3-9mm, 3x optical zoom |
| Minimum Illumination | 0 lux with IR on |
| Features | |
| Day/Night | Yes, IR cut filter |
| Wide Dynamic Range | - |
| General | |
| Dimensions | 6.8” (H) x 5.3” (D); (173mmx135mm) |
| Environmental | IP66 |
| Operation Temperature | -22° F to 122° F (-30° C to 50° C) |
| Power Consumption | 15.4W max |
| Power Requirements | 12V DC ±10%, 24V AC ±10% 60Hz, 802.3af class 3 PoE |
| Weight | 4.8 lbs (2184g) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| SD Card Slot | Yes, max 32GB |
| Network | |
| ONVIF | - |
| Video | |
| Composite Output | - |
| Compression | MPEG4, MPJEG |
| Frame rate (max) | 10 fps @ 1600x1200 (MPEG4); 15 fps @ 1600x1200 (MJPEG) 2 |
| Resolutions | 1600x1200, 1280x960, 800x600, 640x480, 320x240, 176x144 |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
