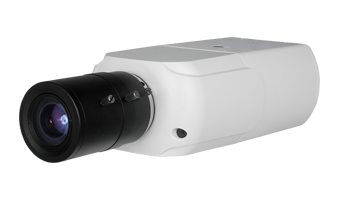

The IKS-WB9518 is a 4K IP box camera with Ultra HD resolution (3840 x 2160) that delivers four times the imaging power of standard HD (1920 x 1080). Ultra HD is ideal for large area coverage or fast moving, high traffic locations, where it can precisely identify objects even when zooming in at great distances. A C/CS lens mount allows for a wide variety of lens options, while Digital WDR and True D/N make it flexible for almost any application.
Kit available as well: IKS-WB9518 with 3.6-10mm lens.
| Application | |
|---|---|
| Uses | Security, surveillance, CCTV, indoor, outdoor |
| Audio | |
| Audio compression | G.726, G711 |
| Audio In/Out | MIC In (plug-in 3.3V, 200k); LINE OUT (1 Vms) 1 |
| Camera | |
| Effective pixels | 3840 x 2160 |
| Image sensor | 1/1.9" CMOS 4K |
| IR Illuminators | - |
| Lens type | C/CS (lens not included) |
| Minimum Illumination | 0.05 lux @ F1.8 (color) / 0.005 lux @ F1.8 (B&W;) |
| Features | |
| BLC | Yes |
| Day/Night | Yes, IR cut filter |
| Gain (AGC) | Auto |
| Motion detection | Yes |
| Privacy mask | Yes |
| Tamper protection | Yes |
| White Balance | Auto, manual, ATW, One push (2700-7800K) |
| Wide Dynamic Range | Digital WDR |
| General | |
| Dimensions | 5.9” (L) x 3.1” (W) x 2” (H) (148mm x 79mm x 52mm) |
| Operation Humidity | ~ 90% |
| Operation Temperature | 14° F to 122° F (-10° C to 50° C) |
| Power consumption | 8.5W max |
| Power Requirements | 802.3af PoE, 12V DC ± 10 % |
| Weight | 0.87 lbs (395g) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| Ethernet Connectors | 10 Base-T/100 Base-TX, RJ45 connector |
| SD card slot | MicroSDXC 64GB max |
| Network | |
| Alarm Recording | FTP, email, microSD card |
| Bandwidth control | QoS |
| Basic Authorization | Basic, Digest |
| Camera set-up program | Device Search |
| Maximum user access | 20 clients |
| ONVIF | Profile S |
| Plug-In | Active X |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X |
| Security | User password |
| Video | |
| Compression | H.264, MJPEG |
| Frame rate (max) | 25 fps @4K, 30 fps @2K 2 |
| Resolutions | 3840x2160, 3200x1800, 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 720x480, 640x480, 352x240, 320x240 |
| Video streams | 4 streams |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
