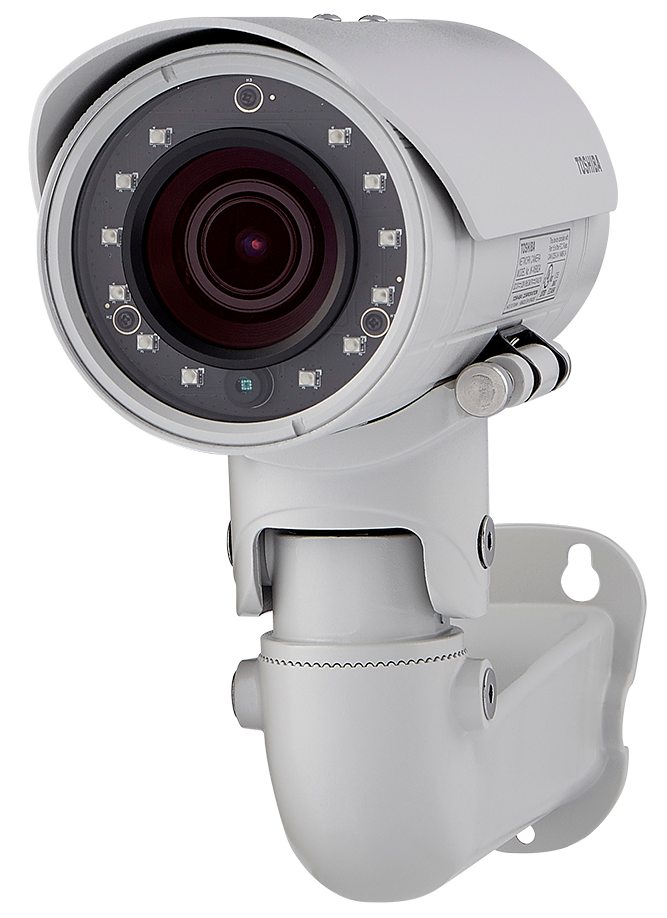

The Toshiba IK-WB82A 3MP bullet IP surveillance camera offers a host of high-end features and technologies. Powerful 3MP resolution, 4x optical remote zoom and remote focus make monitoring large areas easy, while H.264 Smart Codec reduces network bandwidth. Adaptive IR LEDs and Hallway view give the IK-WB82A extra versatility for almost any application. It comes complete and ready for installation without the need for any accessories.
| Application | |
|---|---|
| Uses | Security, surveillance, CCTV, outdoor, IP66 |
| Audio | |
| Audio compression | G.726, G711 |
| Audio In/Out | Built in MIC, MIC In (plug-in power 3.3V, 200k), Line OUT (1 Vrms) 1 |
| Camera | |
| Angle of view | 29° to 86° horizontal |
| Effective Pixels | 2048 x 1536 (4:3) |
| Image Sensor | 1/3" CMOS 3MP |

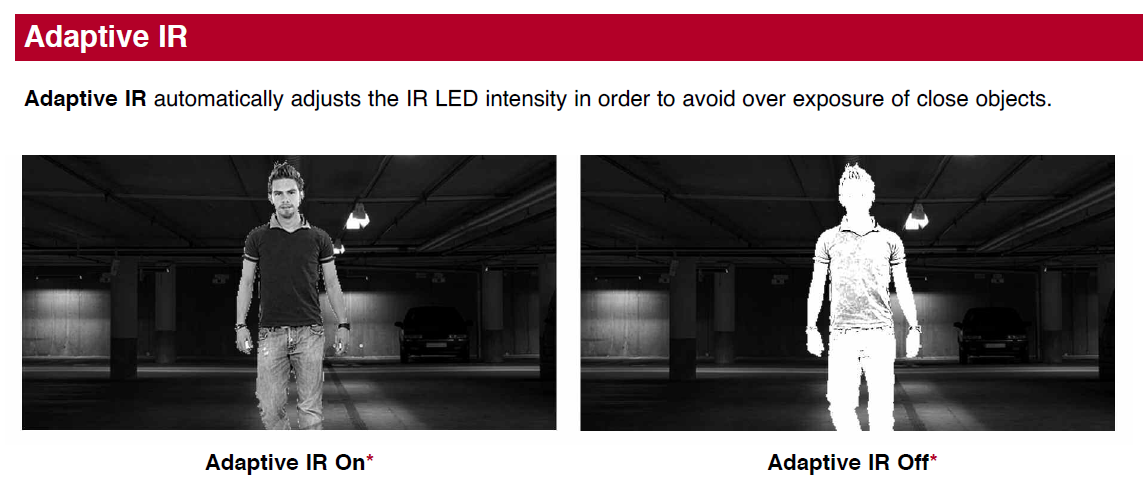

| IR illuminators | Adaptive IR LED, 30m range (98ft) |
| Lens | Varifocal f=2.8 - 12mm, F=1:1.8 |
| Lens Type | Remote zoom, remote focus |
| Minimum Illumination | 0.03 lux / F1.8 (Night mode, LED-OFF, Gain 100%, 1/30 sec), 0 lux w/IR on |
| Zoom | 4x optical, 3x digital |
| Features | |
| BLC | Yes |
| Day/Night | Yes, IR cut filter |
| Gain (AGC) | Auto |
| Motion detection | Yes |
| Privacy mask | Yes |
| Tamper protection | Yes |
| White Balance | Manual, AWB (2500K - 10,000K) |
| Wide Dynamic Range | True WDR |
| General | |
| Dimensions | 8.7" (H) x 3.3" (D) (221mm x 84.5mm) |
| Environmental | IP66 |
| Operation Humidity | ~ 90% |
| Operation Temperature | PoE: -22°F to 122°F (-30°C to 50°C); 12V DC: -22°F to 122°F (-30°C to 50°C) |
| Power consumption | 12V DC, 1.02A |
| Power Requirements | 802.3af PoE, 12V DC ± 10 % |
| Weight | 4.2 lbs (1900g) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| Ethernet Connectors | 10 Base-T/100 Base-TX, RJ45 connector |
| SD Card Slot | MicroSD/SDHC/SDXC 64GB max |
| Network | |
| Alarm Recording | FTP, email, microSD card |
| Bandwidth control | QoS, CoS |
| Basic Authorization | Yes (Windows standard) |
| Camera set-up program | Installation Wizard |
| Maximum user access | 10 clients |
| ONVIF | Profile S |
| Plug-In | Active X |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X |
| Video | |
| Compression | H.264 Smart Codec, H.264, MJPEG |
| Frame rate (max) | 20 fps @2048x1536, 30 fps @1920x1080, 60 fps @1280x720 (WDR-OFF) 2 |
| Image rotation | Hallway, Flip, Mirror views |
| Resolutions | 2048x1536, 1920x1080, 1280x1024, 1280x720, 1024x768, 640x480, 320x240 |
| Video streams | 3 streams |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
