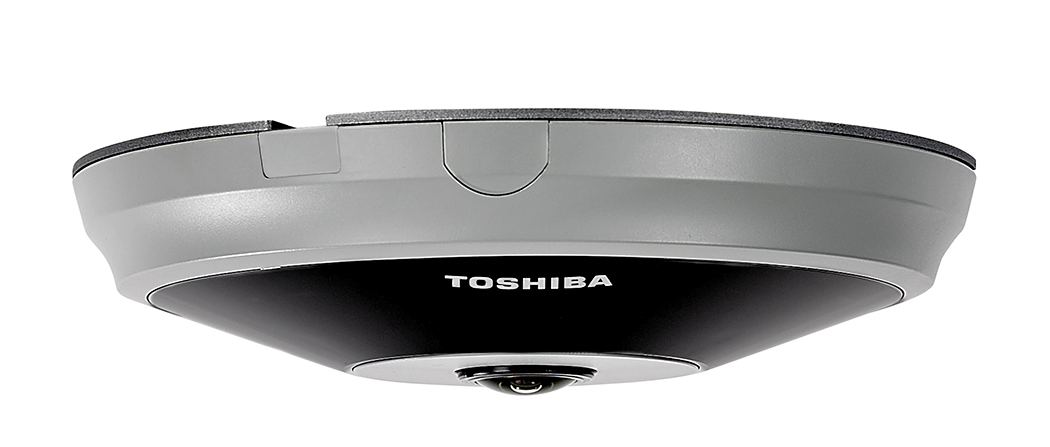

The Toshiba IK-WF51R is a 5MP panoramic vandal-resistant dome IP camera with integrated IR LEDs. Full surround viewing and up to 15fps in full resolution empower the IK-WF51R to cover large surveillance areas with a single camera. IR LEDs and an asthetically pleasing yet rugged form factor make it suitable for any application. ONVIF compliance and PoE/PoE+ ensure compatibility with all Toshiba and 3rd party systems.
| Audio | |
|---|---|
| Audio compression | G.726, G711 |
| Audio In/Out | Built in MIC, MIC In (plug-in power 3.3V, 200k), Line OUT (1 Vrms) 1 |
| Camera | |
| Angle of View | 175° horizontal, 175° vertical |
| Effective Pixels | 2560 x 1920 (4:3) |
| Image Sensor | 1/2.5" CMOS 5MP |
| IR Illuminators | IR LED, 10m x 10m area at 3m range |
| Lens | Fisheye f=1.5mm, F=2.8 |
| Lens Type | Fixed focal M12 |
| Minimum Illumination | 0.6 lux / F2.8 (50 IRE, Gain 100%, 1/30 sec), 0 lux w/IR on |
| Features | |
| BLC | Yes |
| Day/Night | Yes, IR cut filter |
| Gain (AGC) | Auto |
| Motion detection | Yes |
| Privacy mask | Yes |
| Tamper protection | Yes |
| White Balance | Manual, AWB (2500K - 10,000K) |
| Wide Dynamic Range | Digital WDR |
| General | |
| Dimensions | 2.0" (H) x 6.3" (D) (51mm x 160mm) |
| Environmental | IK10 |
| Environmental | IP66, EN50155 Railway standard |
| Operation Humidity | ~ 90% |
| Operation Temperature | PoE: 14°F to 122°F (-10°C to 50°C); PoE+/12V DC: -22°F to 122°F (-30°C to 50°C) |
| Power Consumption | 22W |
| Power Requirements | 802.3af PoE, 802.3at PoE+, 12V DC ± 10 % |
| Weight | 1.75 lbs (794g) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| Ethernet Connectors | 10 Base-T/100 Base-TX, RJ45 connector |
| SD Card Slot | MicroSD/SDHC/SDXC 64GB max |
| Network | |
| Alarm Recording | FTP, email, MicroSD card, HTTP |
| Bandwidth control | QoS, CoS |
| Basic Authorization | Yes (Windows standard) |
| Camera set-up program | Installation Wizard |
| Maximum user access | 10 clients |
| ONVIF | Profile-S (test tool v14.12) |
| Plug-In | Active X |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X |
| Security | Multi level ID/Password, IP address filtering, HTTPS, 802.1x portbased authentication |
| Video | |
| Compression | H.264, MPEG4, MPJEG |
| Dewarp | Local camera and software dewarping |
| Frame Rate (max) | 15 fps @5MP, 25 fps @1080p (MPEG4), 30 fps @1080p (H.264, MJPEG) 2 |
| Resolutions | 1920x1920, 1536x1536, 1280x1280, 1056x1056, 768x768, 512x512, 384x384, 256x256, 192x192 |
| Video streams | 3 streams |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
