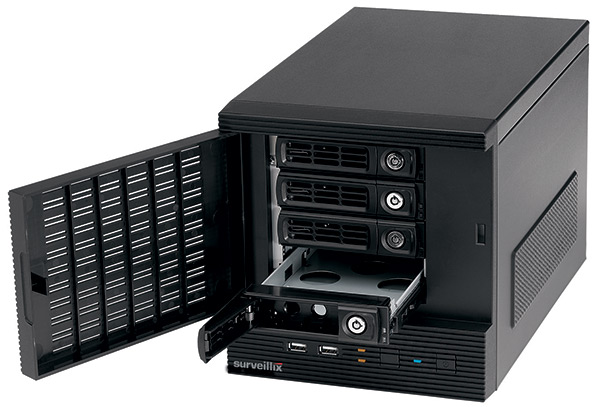

The ESV16 is a high-performance, cost-effective solution. The 4 removable hard drives (not included) allow for a total of 12TB of storage. User-friendly GUI interfaces on the local recorder, browser or mobile apps minimizes investigation times and ensures connectivity wherever you are.
| Dimensions | |
|---|---|
| Dimensions (h x w x d) | 8.47" x 7.87" x 12.93" |
| Rackmount Size | - |
| Weight | 14.3 lbs |
| Frame Rates | |
| Analog Live Viewing Rate (PPS) | - |
| Analog Recording Rate (PPS) | - |
| Inputs/Outputs | |
| Alarm Outputs | - |
| Audio Inputs | 1 Line In, 1 Mic In, Up to 16 |
| LAN | 100/1000 Gigabit Ethernet |
| Sensor/Alarm Inputs | - |
| USB Ports | USB 2.0 x 6 |
| Overview | |
| Analog Video Inputs | - |
| Image Compression | H.264, MPEG4, MPJEG |
| IP Video Inputs | 16 |
| Max Number of Channels | 16 |
| Video Outputs | VGA x 1 |
| Power | |
| Power Input | AC 100-240V (50Hz/60Hz) |
| Redundant Power Supply | - |
| Remote Clients Included | |
| Browser Client | Internet Explorer |
| Managed Recorder Health | - |
| Mobile Apps | iPad/iPhone/Android |
| Tablet Apps | iPad/Android |
| VMS Software | CMS Basic |
| Storage | |
| External Storage | eSATA x 1 |
| RAID Configuration (optional) | RAID0, RAID1, RAID5, RAID10 |
| Storage Capacity | Up to 12TB |
| System | |
| CPU | Intel Atom |
| Operating System | Embedded Linux |
| Warranty | |
| Limited Warranty | 2 years, 2 years advance replacement |
| Designs and specifications are subject to change without notice. | |
