The Surveillix ESV4 is a low cost, easy to use, entry level IP video solution. With an HDMI output and support for 4 megapixel IP cameras, the ESV4 is an ideal drop-in replacement for legacy analog video systems. User friendly GUI interfaces on the local recorder, browser or mobile app eliminates any hesitation to migrating to IP video.
| Dimensions | |
|---|---|
| Dimensions (h x w x d) | 5.9" x 3.15" x 8.39" |
| Rackmount Size | - |
| Weight | 3.2 lbs |
| Frame Rates | |
| Analog Live Viewing Rate (PPS) | - |
| Analog Recording Rate (PPS) | - |
| IP Video Throughput | Up to 40 Mbps |

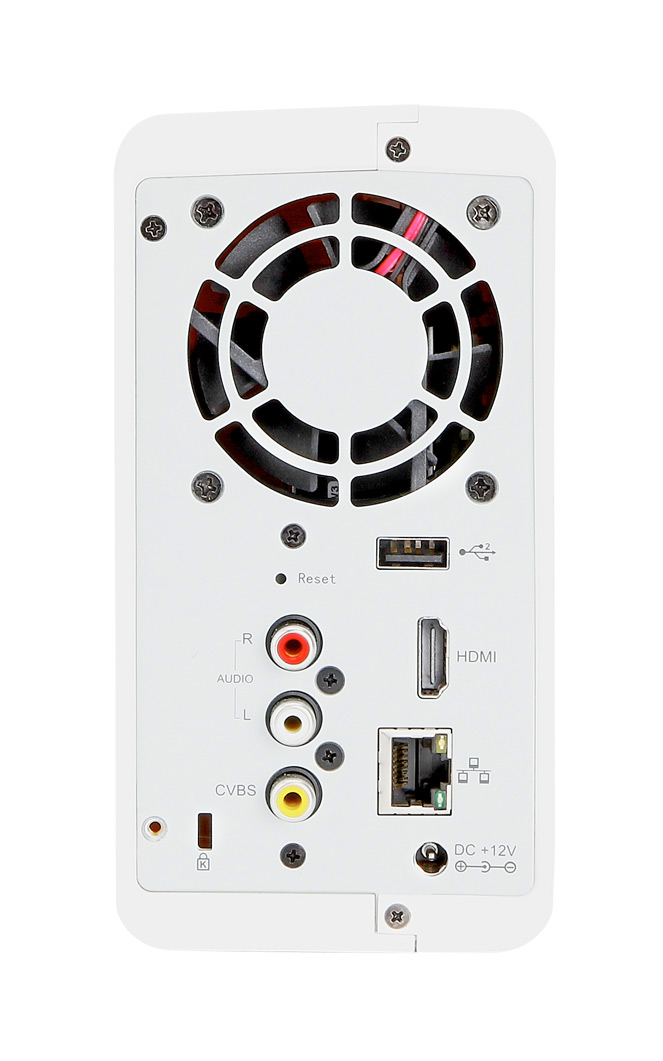

| Inputs/Outputs | |
| Alarm Outputs | - |
| Audio Inputs | 1 RCA in, up to 4 |
| LAN | 10/100 Ethernet |
| Sensor/Alarm Inputs | - |
| USB Ports | USB 2.0 x 2 |
| Overview | |
| Analog Video Inputs | - |
| Image Compression | H.264, MPEG4, MPJEG |
| IP Video Inputs | 4 |
| Max Number of Channels | 4 |
| Video Outputs | HDMI x 1 |
| Power | |
| Power Input | AC 100-240V (50Hz/60Hz) |
| Redundant Power Supply | - |
| Remote Clients Included | |
| Browser Client | Internet Explorer |
| Managed Recorder Health | - |
| Mobile Apps | iPad/iPhone/Android |
| Tablet Apps | iPad/Android |
| VMS Software | CMS Basic |
| Storage | |
| External Storage | - |
| RAID Configuration (optional) | - |
| Storage Capacity | Up to 6TB |
| System | |
| CPU | Intel Atom |
| Operating System | Embedded Linux |
| Warranty | |
| Limited Warranty | 2 years, 2 years advance replacement |
| Designs and specifications are subject to change without notice. | |
