The Toshiba IK-WD31A is a 3MP indoor IP camera with many high end features and specifications. 3MP resolution, 4x optical remote zoom and remote focus make covering large areas easy while H.264 Smart Codec reduces network bandwidth. Adaptive IR LEDs and Hallway view make the IK-WD31A flexible for almost any application. ONVIF compliant and 802.3af Power over Ethernet ensure compatibility with any system.
Live Demo
| Audio | |
|---|---|
| Audio compression | G.726, G711 |
| Audio In/Out | Built in MIC, MIC In (plug-in power 3.3V, 200k), Line OUT (1 Vrms) 1 |
| Camera | |
| Angle of View | 29° - 82° horizontal, 22° - 61°vertical |
| Effective Pixels | 2048 x 1536 (4:3) |
| Image Sensor | 1/3" CMOS 3MP |

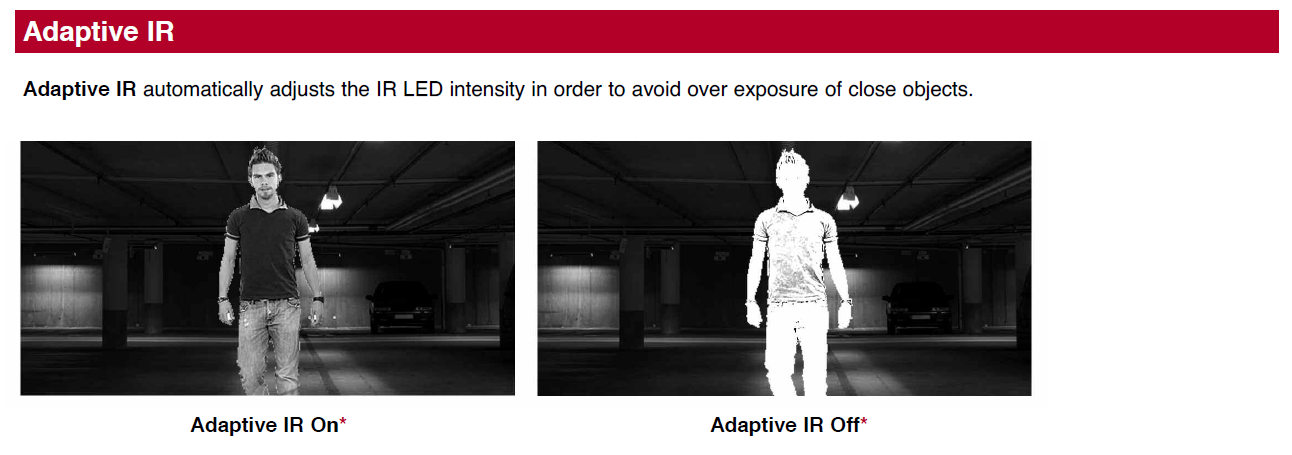

| IR Illuminators | Adaptive IR LED, 20m range |
| Lens | Varifocal f=2.8 - 12mm, F=1:1.8 |
| Lens Type | Remote zoom, remote focus |
| Minimum Illumination | 0.03 lux / F1.8 (Night mode, LED-OFF, Gain 100%, 1/30 sec), 0 lux w/IR on |
| Zoom | 4x optical, 3x digital |
| Features | |
| BLC | Yes |
| Day/Night | Yes, IR cut filter |
| Gain (AGC) | Auto |
| Motion detection | Yes |
| Privacy mask | Yes |
| Tamper protection | Yes |
| White Balance | Manual, AWB (2500K - 10,000K) |
| Wide Dynamic Range | True WDR |
| General | |
| Dimensions | 4.3" (H) x 6.3" (D) (109mm x 159.3mm) |
| Operation Humidity | ~ 90% |
| Operation Temperature | 14° F to 122° F (-10° C to 50° C) |
| Power Consumption | 12V DC / 2.1A |
| Power Requirements | 802.3af PoE, 12V DC ± 10 % |
| Weight | 1.67 lbs (758g) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| Ethernet Connectors | 10 Base-T/100 Base-TX, RJ45 connector |
| SD Card Slot | MicroSD 64GB max |
| Network | |
| Alarm Recording | FTP, email, microSD card |
| Bandwidth control | QoS, CoS |
| Camera set-up program | Installation Wizard |
| Maximum user access | 10 clients |
| ONVIF | Profile-S (test tool v14.06) |
| Plug-In | Active X |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X |
| Video | |
| Compression | H.264 Smart Codec, H.264, MJPEG |
| Frame rate (max) | 20 fps @2048x1536, 30 fps @1920x1080, 60 fps @1280x720 (WDR-OFF) 2 |

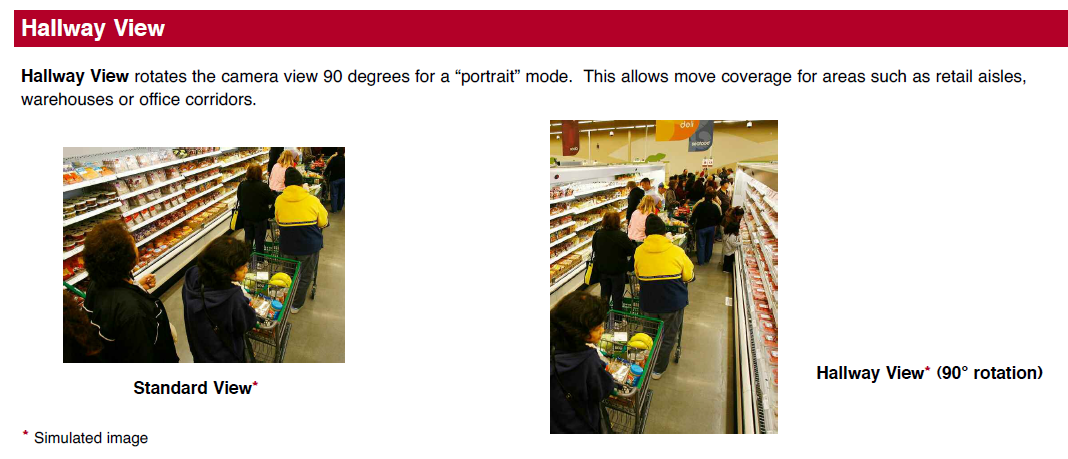

| Image rotation | Hallway, Flip, Mirror views |
| Resolutions | 2048x1536, 1920x1080, 1280x1024, 1280x720, 1024x768, 640x480, 320x240 |
| Video streams | 3 streams |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
