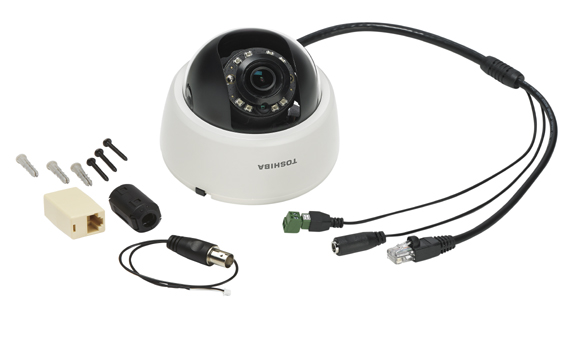

The Toshiba IK-WD05A is a wide angle indoor 1080p HD IP camera with IR LEDs for multiple IP applications. With wide dynamic range and true day/night, it is ideal for use in a variety of locations. ONVIF compliant and 802.3af Power over Ethernet simplifies installation.
Live Demo
| Audio | |
|---|---|
| Audio In/Out | - |
| Camera | |
| Effective Pixels | 1920 x 1080 |
| Image Sensor | 1/2.7" CMOS 2MP |
| IR Illuminators | 15m range |
| Lens | Fixed f=2.8mm, 4x digital zoom, 110° viewing angle |
| Minimum Illumination | 0.05 lux (color); 0.001 lux (B/W); 0 lux with IR on |
| Features | |
| Day/Night | Yes, IR cut filter |
| Wide Dynamic Range | Yes |
| General | |
| Dimensions | 3.15” (H) x 4.33” (D); (80mmx110mm) |
| Environmental | - |
| Operation Temperature | 14° F to 122° F (-10° C to 50° C) |
| Power Consumption | 3.84W max |
| Power Requirements | 802.3af PoE, 12V DC |
| Weight | 1.1 lbs (500g) |
| Interface | |
| Digital In/Out | 1 IN |
| SD Card Slot | Micro SD/SDHC, max 32GB |
| Network | |
| ONVIF | Yes, Profile S and ver 1.02 |
| Video | |
| Composite Output | Yes |
| Compression | H.264, MPEG4, MPJEG |
| Frame rate (max) | 30 fps @ 1920x1080 1 |
| Resolutions | 1920x1080, 1280x1024, 1280x720, 1024x768, 640x480, 320x240 |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
