The IK-WB81A is a 1080p full HD IP bullet camera with remote zoom and one-touch auto focus capabilities. With 3 advanced SR LED IR illuminators, mechanical IR filter, and wide dynamic range, the IK-WB81A is a full featured IP camera ready for any environment. Easy cable management, IP66 rating and included mounting hardware make installation fast.

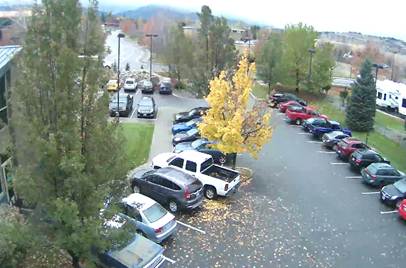

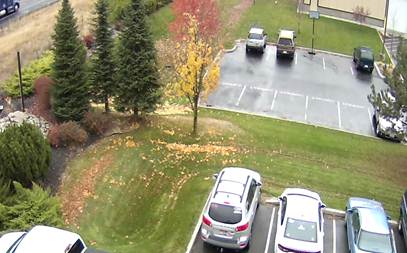

LIVE DEMO
| Audio | |
|---|---|
| Audio In/Out | MIC In (plug-in 3.3V, 200k); LINE OUT (1 Vms) 1 |
| Camera | |
| Effective Pixels | 1920 x 1080 |
| Image Sensor | 1/2.7" CMOS 2MP |
| IR Illuminators | SRLED 30m range 2 |
| Lens | Varifocal f=3.7-9mm, 3x optical zoom, 4x digital zoom |
| Minimum Illumination | 0.04 lux / F1.2; 0 lux with IR on |
| Features | |
| Day/Night | Yes, IR cut filter |
| Wide Dynamic Range | Digital WDR |
| General | |
| Dimensions | 7.83” (H) x 3.19” (D); (199mmx81mm) |
| Environmental | IP66 |
| Operation Temperature | -22° F to 122° F (-30° C to 50° C) |
| Power Consumption | 12V DC / 0.8A, 24V AC / 0.8A |
| Power Requirements | 12V DC ±10%, 24V AC ±10% 60Hz, 802.3af class 3 PoE |
| Weight | 2.86 lbs (1.3kg) |
| Interface | |
| Digital In/Out | 1 IN / 1 OUT |
| SD Card Slot | SD/SDHC, max 32GB |
| Network | |
| ONVIF | Yes, ver 1.02 |
| Video | |
| Composite Output | Yes |
| Compression | H.264, MPEG4, MPJEG |
| Frame rate (max) | 30 fps @ 1920x1080 3 |
| Resolutions | 1920x1080, 1600x904, 1360x768, 1280x720, 640x360, 176x144 |
| Warranty | |
| Limited Warranty | 2 years parts and labor |
| Designs and specifications are subject to change without notice. | |
